Yanmar
4TNV98
4
Ф94×110
China three electric spray
| Basic parameter | |
| Boom | 3620mm |
| Bucket arm | 1670mm |
| Bigging bucket | 0.3m3 |
| Track plate width | 450mm |
| Working weight | 7500kg |
| Traveling speed(high/low) | 4.5/2.9km |
| Rotating speed | 10.7rpm |
| Oils capacity | |
| Fuel tank | 130L |
| Hydraulic tank | 90L |
| Maximum digging force | |
| Bigging bucket | 5.3ton |
| Bucket arm | 3.7ton |
| Safety valve setting value | |
| system pressure(Front working device) | 250kg/cm2 |
| system pressure(rotating part) | 220kg/cm2 |
| Oil cylinder | |
| Big arm cylinder(bore & stroke) | 110mm×865mm |
| Forearm cylinder(bore & stroke) | 100mm×813mm |
| bucket cylinder(bore & stroke) | 85mm×680mm |

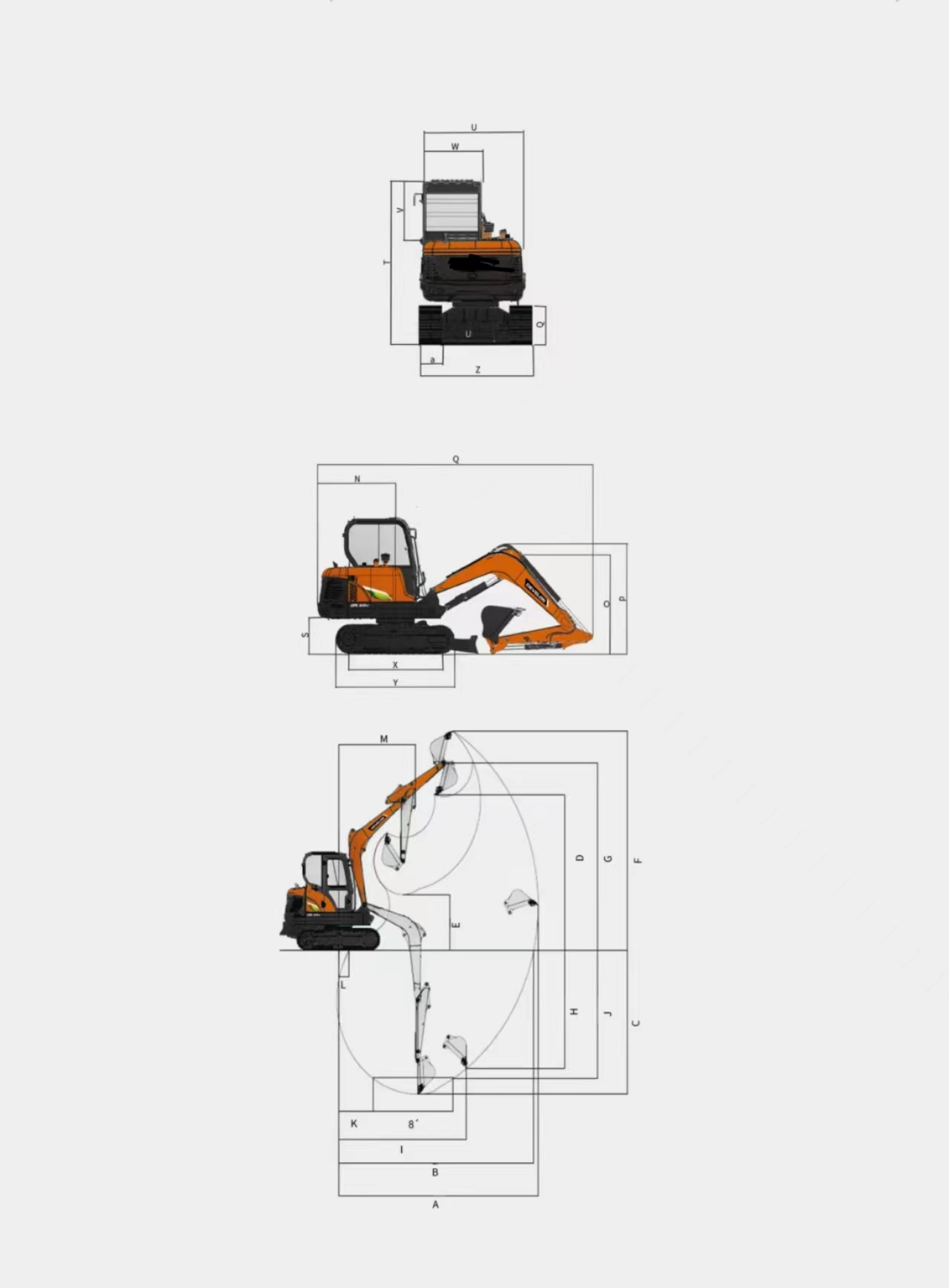

| Transportation height(to the top of thearm) | O | (mm) | 2610 | |
| Transportation height(to the top of the hose) | P | (mm) | 2680 | |
| Transport length | Q | (mm) | 6030 | |
| Transport width | Z | (mm) | 2180 | |
| Transit width | U | (mm) | 2130 | |
| Guide wheel and drive wheel center distance | X | (mm) | 2110 | |
| Track length | Y | (mm) | 2750 | |
| Track width | a | (mm) | 450 | |
| Track height | b | (mm) | 695 | |
| Mini ground clearance | c | (mm) | 370 | |
| Max digging distance | A | (mm) | 6270 | |
| Max digging distance on ground | B | (mm) | 6115 | |
| Digging depth | C | (mm) | 4080 | |
| Max loading height | D | (mm) | 5170 | |
| Mini loading height | E | (mm) | 2345 | |
| Digging height | F | (mm) | 7100 | |
| Max height of bucketpin | G | (mm) | 6150 | |
| Max vertical arm digging depth | H | (mm) | 2670 | |
| Max vertical radius | I | (mm) | 4750 | |
| 8 feet max digging depth on flatground | J | (mm) | 3725 | |
| 8 fee tmini digging radius on flatground | K | (mm) | 1120 | |
| Mini digging distance | L | (mm) | 560 | |
| Mini turning radius | M | (mm) | 1745 | |
